Vk10P is a low-noise IEPE/ICP constant current
driving and receiving amplifier. This product adopts low-noise amplification unit, low-noise power supply, optimized power supply, etc., which makes this product have the advantages of high precision, ultra-low noise, high suppression ratio, wide measurement range and low-temperature drift. It is suitable for various occasions of weak signal measurement. Vk10P amplifier adopts all metal shielding, special anti-interference treatment of internal core unit, and the power supply unit adopts the design of wide input range and high reliability. This product can be used in occasions with strong industrial interference, and has the advantages of moisture-proof and shockproof.

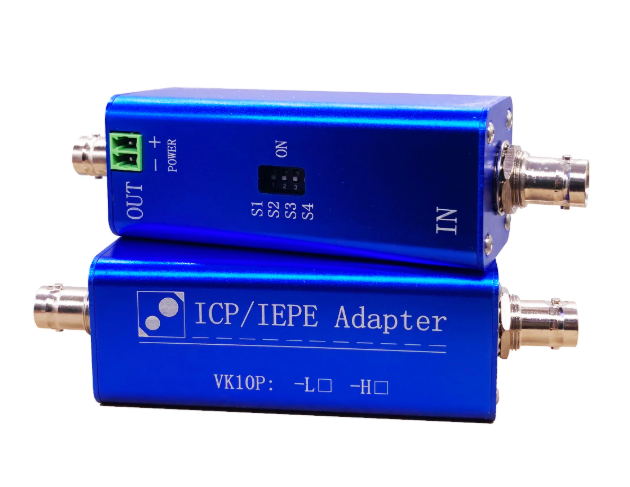

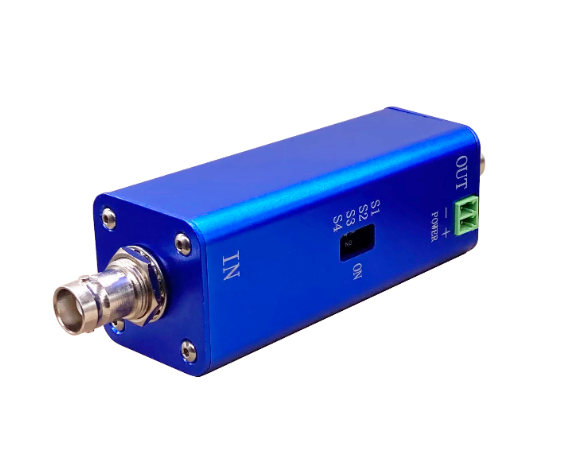

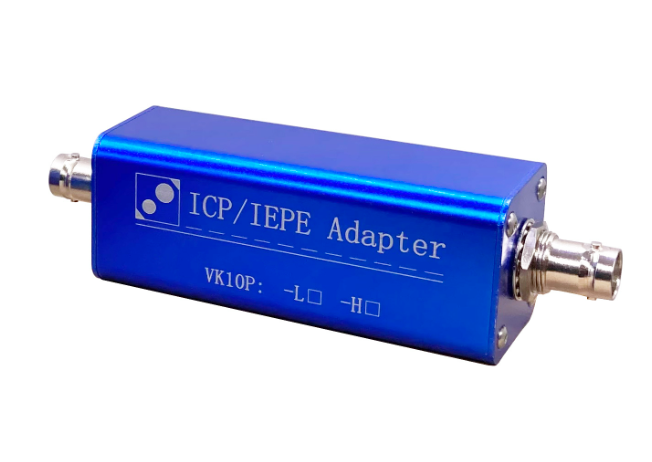

VK10P IEPE constant current drive receiving amplifier adapter 0.5Hz – 100kHz
229,00 €
| Weight | 0,15 kg |
|---|---|
| Dimensions | 3,2 × 11,7 × 3,2 cm |
| Features |
- Charge Input Range: 0~30V
- Power Supply Voltage: 8~30V (Range 5-35V)
- Color: Blue
- Frecuency Response: 0.5Hz ~ 100kHz
- Supply Current: 10mA (Range 6-20mA)
- Input Method: BNC single input
- Input Resistance: 100Ω
- Output Method: BNC single-ended output
- Output Voltage Range: 0V ~ ±5V
- Output Voltage Bias: <1mV
- Dual Switch Gain Accuracy: <1%
- Dualtoggle Switch Gain Range: 1~101 times
- Operating Temperature: -45~85 ºC
- Storage Temperature: -60~105 ºC
- Safe Use Absolute Maximum: Supply voltage: -1~+35 Input Port Internal Voltage -6~+6（Built-in protection circuit) Output Port Voltage -1~+35（Built-in protection circuit) Electrostatic input (ESD) on all ports 4000V
- Channels: 1
- Gain Range: x1,x2,x10,x25,x101 switchable
