CHA10x is a high-precision charge signal generator, which has the advantages of high resolution, high precision, ultra-low noise, wide adjustment range and low-temperature drift. It is suitable for various charge signal occasions such as accurate charge drive, charge amplifier correction and charge comparison. Cha10x generator is composed of FPGA high-speed processor and high-precision charge generation unitThe source adopts high-precision reference, the charge unit adopts high-precision imported charge
devices, and the charge range and frequency are accurately controllable. Cha10x generator adopts all metal shielding, which can be used in occasions with strong industrial interference, and has the advantages of moisture-proof, shockproof and anti-interference.

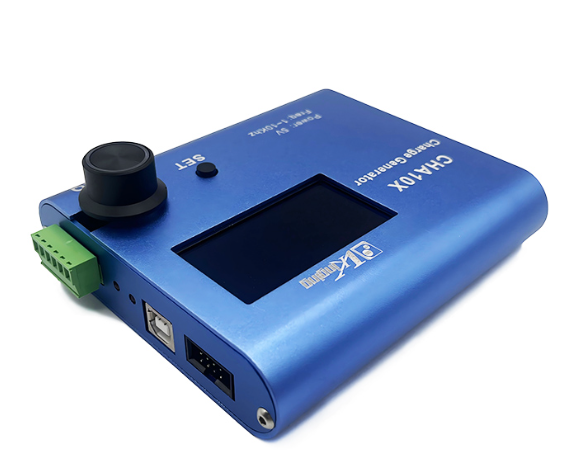

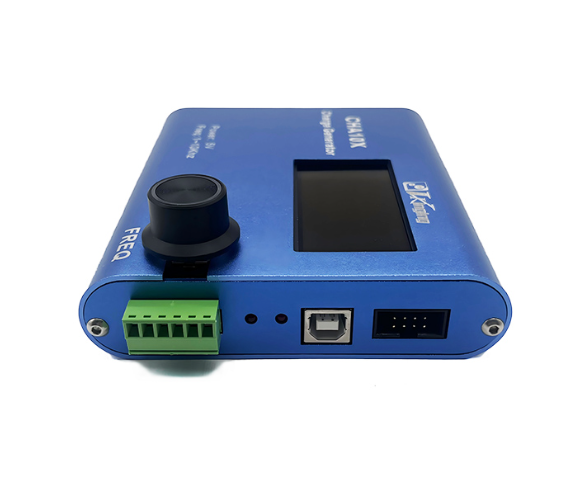

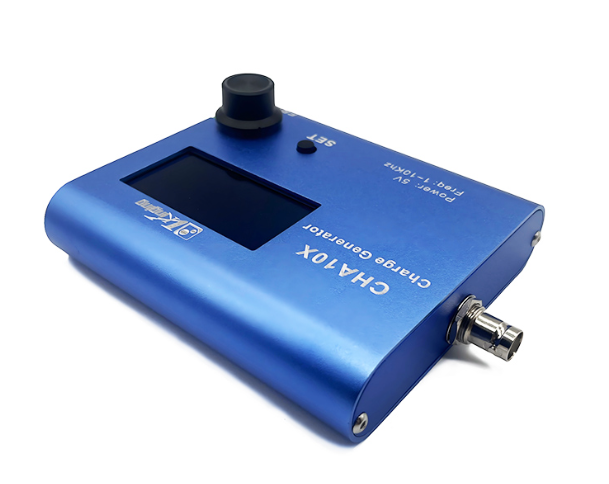

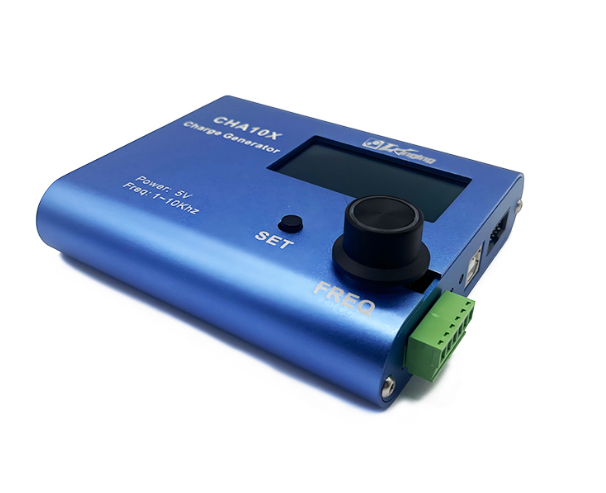

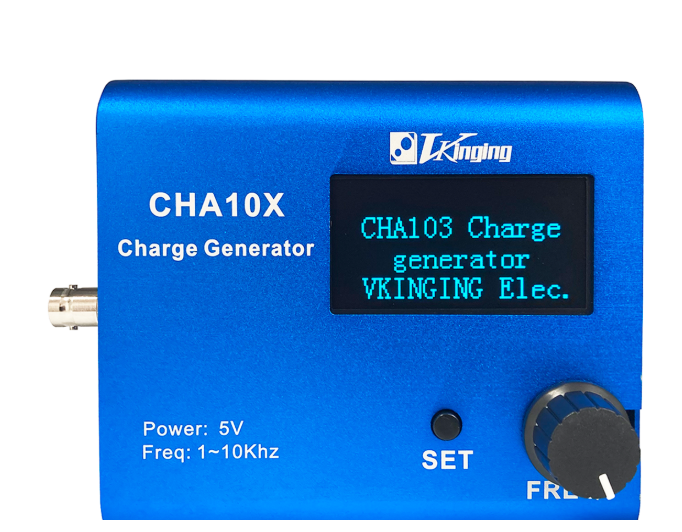

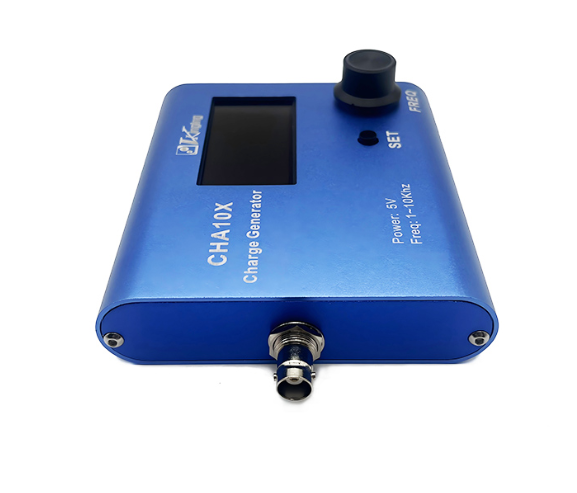

CHA10X Charge Signal Generator
894,00 €
| Dimensions | 10,8 × 12 × 2,6 cm |
|---|---|
| Features |
- Power Supply Voltage: 5V
- Color: Blue
- Frecuency Response: 1Hz setp @1~50Hz 10Hz setp @50~100Hz 100Hz setp@100~10KHz
- Supply Current: 280mA@5V
- Output Voltage Range: 1pC - 580nC
- Operating Temperature: -20~85 ºC
- Storage Temperature: -40~105 ºC
- Channels: 1
- Charge Measurement Accuracy: 1~75pC @>1% 75pC~600nC @>0.5%
- Rs485 Bus Baud Rate: 9600 BPS ( 300-115200 adjustable BPS)
- Rs485 Bus Level: 5V TTL
- Frecuency Accuracy: >0.1%
- Static Impedance Of Charge Output: 100 GΩ (Range 50~1000)
- Antistatic Capability Of Output Port: 4KV
We make orders on demand
If you need any product for a very specific task, do not hesitate to contact us — we specialize in finding and delivering custom electronic components tailored to your needs. Whether you’re working on a unique project or developing a prototype, our team is here to help you source the exact part you’re looking for.
